Lights and shapes

Navigation lights vessel colregs
Figure 10.1 – Arcs of visibility of sternlight and sidelights.

Definitions

  • Masthead light
    means a white light placed over the fore and aft centreline of the vessel showing an unbroken light over an arc of the horizon of 225° and so fixed as to show the light from right ahead to 22.5° abaft the beam on either side of the vessel.
  • Sidelight
    means a green light on the starboard side and a red light on the port side each showing an unbroken light over an arc of the horizon of 112.5° and so fixed as to show the light from right ahead to 22.5° abaft the beam on its respective side.
    In a vessel of less than 20 metres in length the sidelights may be combined in one lantern carried on the fore and aft centreline of the vessel.
  • Sternlight
    means a white light placed as nearly as practicable at the stern showing an unbroken light over an arc of the horizon of 135° and so fixed as to show the light 67.5° from right aft on each side of the vessel.
  • Towing light
    means a yellow light having the same characteristics as the sternlight.
  • All-round light
    means a light showing an unbroken light over an arc of the horizon of 360°.
  • Flashing light
    means a light flashing at regular intervals at a frequency of 120 flashes or more per minute.

Colour legend

White light White light

Yellow light Yellow light

Green light Green light

Red light Red light

Yellow flash light Yellow flashing light

Optional white light Optional white light

Power-driven vessel underway

A power-driven vessel underway shall exhibit:

  • a masthead light forward;
  • a second masthead light abaft of and higher than the forward one; except that a vessel of less than 50 metres in length shall not be obliged to exhibit such light but may do so;
  • sidelights;
  • a sternlight.
Power driven vessel underway, longer than 50 m
Power driven vessel longer than 50 m top
Power driven vessel longer than 50 m abeam Power driven vessel longer than 50 m ahead Power driven vessel longer than 50 m astern
Abeam, port side Ahead Astern
Power driven vessel underway, shorter than 50 m
Power driven vessel shorter than 50 m top
Power driven vessel shorter than 50 m abeam Power driven vessel shorter than 50 m ahead Power driven vessel shorter than 50 m astern
Abeam, port side Ahead Astern
Figure 10.2 – Power driven vessels under way, longer and shorter than 50 m.
Figure 10.3 – Power-driven vessel underway.
Figure 10.4 – Power-driven vessel underway – less than 50 m in length.
Figure 10.5 – A vessel proceeding under sail which has her engine running shall exhibit, forward where it can best be seen, a conical shape, apex downwards.
She shall exibit lights according to a power-driven vessel.

Sailing vessels underway and vessels under oars

A sailing vessel underway shall exhibit:

  • sidelights
  • a sternlight

In a sailing vessel of less than 20 metres in length the lights may be combined in one lantern carried at or near the top of the mast where it can best be seen.

A sailing vessel underway may, in addition to the lights, exhibit at or near the top of the mast, where they can best be seen, two all-round lights in a vertical line, the upper being red and the lower green, but these lights shall not be exhibited in conjunction with the combined lantern.

4 lights configurations sailing

Sailing vessel 1
Sailing vessel 1 top
Sailing vessel 1 abeam Sailing vessel 1 ahead Sailing vessel 1 astern
Abeam, port side Ahead Astern
Sailing vessel 2
Sailing vessel 2 top
Sailing vessel 2 abeam Sailing vessel 2 ahead Sailing vessel 2 astern
Abeam, port side Ahead Astern
Sailing vessel 3
Sailing vessel 3 top
Sailing vessel 3 abeam Sailing vessel 3 ahead Sailing vessel 3 astern
Abeam, port side Ahead Astern
Sailing vessel 4
Sailing vessel 4 top
Sailing vessel 4 abeam Sailing vessel 4 ahead Sailing vessel 4 astern
Abeam, port side Ahead Astern
Figure 10.6 – The 4 lights configurations sailing.
Figure 10.7 – Sailing vessel underway.
Configuration 1, and if sidelights are combined on the bow: configuration 4.
Figure 10.8 – Sailing vessel underway – less than 20 meters in length.
Configuration 2.
Figure 10.9 – Sailing vessel underway.
Configuration 3.

A sailing vessel of less than 7 metres in length shall, if practicable, exhibit the lights prescribed above, but if she does not, she shall have ready at hand an electric torch or lighted lantern showing a white light which shall be exhibited in sufficient time to prevent collision.

A vessel under oars may exhibit the lights prescribed in this Rule for sailing vessels, but if she does not, she shall have ready at hand an electric torch or lighted lantern showing a white light which shall be exhibited in sufficient time to prevent collision.

Sailing and Motoring

A vessel proceeding under sail which has her engine running shall exhibit, forward where it can best be seen, a conical shape, apex downwards.
She shall exibit lights according to a power-driven vessel.

Sailing and motoring
Sailing and motoring day sign Day sign
Sailing and motoring abeam Sailing and motoring ahead Sailing and motoring astern
Abeam, port side Ahead Astern
Figure 10.10 – Vessel proceeding under sail with engine running.

Anchoring

A vessel at anchor shall according to Rule 30 (a) (b) exhibit where it can best be seen:

  • in the fore part, an all-round white light or one ball;
  • at or near the stern and at a lower level than the light prescribed in Rule 30(a)(i), an all-round white light.
Anchored vessel, longer than 50 m
Power driven vessel longer than 50 m anchored day sign Day sign
(1 black sphere)
Power driven vessel longer than 50 m abeam anchored Power driven vessel longer than 50 m ahead anchored Power driven vessel longer than 50 m astern anchored
Abeam, port side Ahead Astern
Anchored vessel, shorter than 50 m
Power driven vessel shorter than 50 m anchored day sign Day sign
(1 black sphere)
Power driven vessel shorter than 50 m abeam anchored Power driven vessel shorter than 50 m ahead anchored Power driven vessel shorter than 50 m astern anchored
Abeam, port side Ahead Astern
Anchored sailing boat
Anchored sailing vessel Day sign Day sign
(1 black sphere)
Anchored sailing vessel abeam Anchored sailing vessel  ahead Anchored sailing vessel  astern
Abeam, port side Ahead Astern
Figure 10.11 – Vessels at anchor.
Figure 10.12 – Vessel at anchor – less than 50 m in length.
Figure 10.13 – Vessel at anchor with deck illumination.
Figure 10.14 – Vessel aground – less than 50 m in length.

Aground

A vessel aground shall according to Rule 30 (d) exhibit the lights prescribed in Rule 30(a) or (b) and in addition, if practicable, where they can best be seen;

  • two all-round red lights in a vertical line;
  • three balls in a vertical line.
Aground, longer than 50 m
Power driven vessel longer than 50 m aground day sign Day sign
(3 black spheres)
Power driven vessel longer than 50 m abeam aground Power driven vessel longer than 50 m ahead aground Power driven vessel longer than 50 m astern aground
Abeam, port side Ahead Astern
Figure 10.15 – Vessel aground.

Towing

A power-driven vessel when towing shall exhibit:

  • two masthead lights in a vertical line. When the length of the tow, measuring from the stern of the towing vessel to the after end of the tow exceeds 200 metres, three such lights in a vertical line; Rule 24;
  • sidelights;
  • a sternlight;
  • a towing light in a vertical line above the sternlight;
  • when the length of the tow exceeds 200 metres, a diamond shape where it can best be seen.

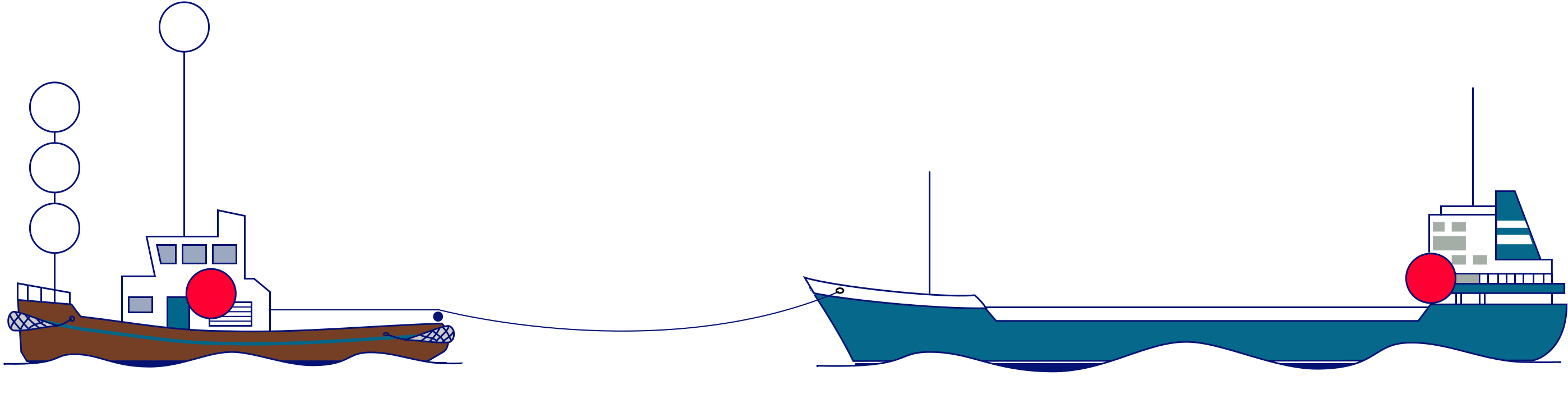

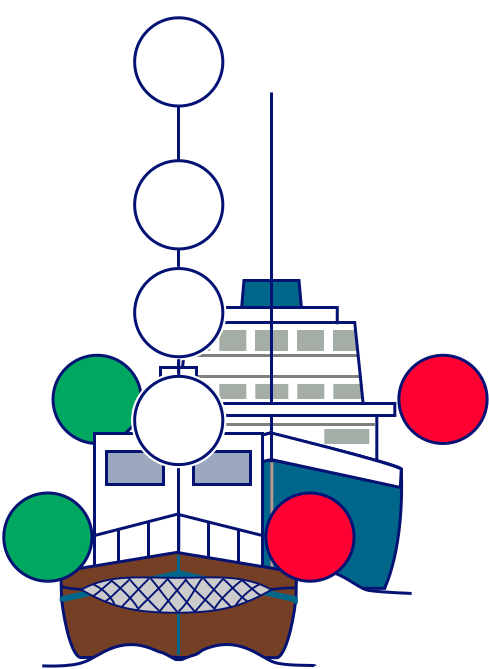

Tugboat longer than 50 m – tow longer than 200 m
Abeam Tugboat longer than 50 m – tow longer than 200 m
Abeam, port side
Day Tugboat longer than 50 m – tow longer than 200 m Ahead Tugboat longer than 50 m – tow longer than 200 m Astern Tugboat longer than 50 m – tow longer than 200 m
Ahead, Day sign
(diamond shapes)
Ahead Astern
Tugboat shorter than 50 m – tow longer than 200 m
Abeam Tugboat shorter than 50 m – tow longer than 200 m
Abeam, port side
Day Tugboat shorter than 50 m – tow longer than 200 m Ahead Tugboat shorter than 50 m – tow longer than 200 m Astern Tugboat shorter than 50 m – tow longer than 200 m
Ahead, Day sign
(diamond shapes)
Ahead Astern

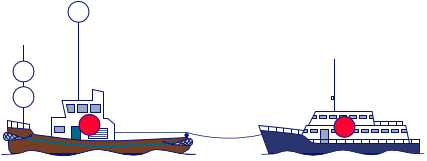

Tugboat longer than 50 m – tow shorter than 200 m
Abeam Tugboat longer than 50 m – tow shorter than 200 m Abeam,
port side
Ahead Tugboat longer than 50 m – tow shorter than 200 m Ahead Tugboat longer than 50 m – tow shorter than 200 m Astern Tugboat longer than 50 m – tow shorter than 200 m
Ahead, Day sign
(no shapes)
Ahead Astern
Tugboat shorter than 50 m – tow shorter than 200 m
Abeam Tugboat shorter than 50 m – tow shorter than 200 m Abeam,
port side
Ahead day Tugboat shorter than 50 m – tow shorter than 200 m Ahead Tugboat shorter than 50 m – tow shorter than 200 m Astern Tugboat shorter than 50 m – tow shorter than 200 m
Ahead, Day sign
(no shapes)
Ahead Astern
Figure 10.16 – Four configurations of towing a conspicuous object.
Figure 10.17 – Power-driven vessel towing astern;
towing vessel less than 50 m in length;
length of tow exceeds 200 m.
Figure 10.18 – Power-driven vessel towing astern;
towing vessel less than 50 m in length;
length of tow 200 m or less.
Figure 10.19 – Vessel or object being towed;
length of tow exceeds 200 m.

Towing an inconspicuous, partly submerged object

An inconspicuous, partly submerged vessel or object, or combination of such vessels or objects being towed; Rule 24 (g), shall exhibit:

  • if it is less than 25 metres in breadth, one all-round white light at or near the forward end and one at or near the after end except that dracones need not exhibit a light at or near the forward end;
  • if it is 25 metres or more in breadth, two additional all-round white lights at or near the extremities of its breadth;
  • if it exceeds 100 metres in length, additional all-round white lights between these lights so that the distance between the lights shall not exceed 100 metres;
  • a diamond shape at or near the aftermost extremity of the last vessel or object being towed and if the length of the tow exceeds 200 metres an additional diamond shape where it can best be seen and located as far forward as is practicable.

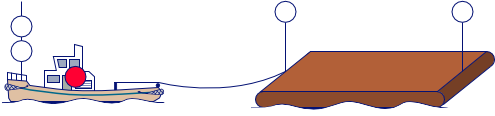

Tow shorter than 200 m, object shorter than 100 m
Abeam Tow shorter than 200 m, object shorter than 100 m
Abeam, port side
Tow longer than 200 m, object shorter than 100 m
Abeam port side Tow shorter than 200 m, object shorter than 100 m
Abeam, port side

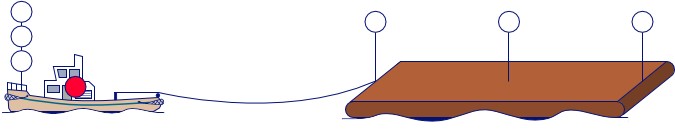

Tow longer than 200 m, object longer than 100 m
Abeam port side Tow longer than 200 m, object longer than 100 m
Abeam, port side
Tow longer than 200 m, object longer than 100 m & wider than 25 m
Abeam port side Tow longer than 200 m, object longer than 100 m & wider than 25 m
Abeam, port side (note that often a fifth round white light in the center is added)
Ahead Tow longer than 200 m, object longer than 100 m & wider than 25 m Astern Tow longer than 200 m, object longer than 100 m & wider than 25 m
Ahead Astern
Tow longer than 200 m, any object size
Tow longer than 200 m, any object size
Day sign, Abeam, port side
Figure 10.20 – Towing inconspicuous objects.

Pushing from ahead or towing alongside

When a pushing vessel and a vessel being pushed ahead are rigidly connected in a composite unit they shall be regarded as a power-driven vessel and exhibit the normal lights.

A power-driven vessel when pushing ahead or towing alongside, except in the case of a composite unit; Rule 24 (c), shall exhibit:

  • two masthead lights in a vertical line;
  • sidelights;
  • a sternlight.

A vessel or object being towed shall exhibit:

  • sidelights;
  • a sternlight;
  • when the length of the tow exceeds 200 metres, a diamond shape where it can best be seen.
  • Provided that any number of vessels being towed alongside or pushed in a group shall be lighted as one vessel,
  • a vessel being pushed ahead, not being part of a composite unit, shall exhibit at the forward end, sidelights;
  • a vessel being towed alongside shall exhibit a sternlight and at the forward end, sidelights.

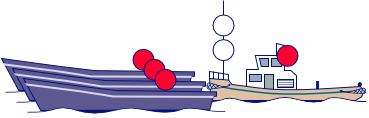

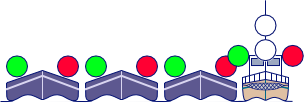

Pushing from ahead
Abeam Pushing from ahead
Abeam, port side
Ahead Pushing from ahead Astern Pushing from ahead
Ahead Astern

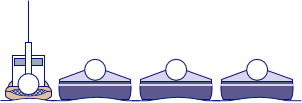

Towing alongside
Abeam port side Towing alongside Abeam, port side
Ahead Towing alongside Astern Towing alongside
Ahead Astern
Figure 10.21 – Towing alongside or pushing ahead.
Figure 10.22 – Pushing: composite unit underway (ridged, so treated as a single power driven vessel).
Figure 10.23 – Pushing: vessel being pushed ahead, not being part of a composite unit.
Figure 10.24 – Vessel being towed alongside.

Fishing – Trawling

A vessel engaged in fishing, whether underway or at anchor, shall exhibit only the lights and shapes prescribed below; Rule 26

A vessel when engaged in trawling, by which is meant the dragging through the water of a dredge net or other apparatus used as a fishing appliance, shall exhibit:

  • two all-round lights in a vertical line, the upper being green and the lower white, or a shape consisting of two cones with their apexes together in a vertical line one above the other;
  • a masthead light abaft of and higher than the all-round green light; a vessel of less than 50 metres in length shall not be obliged to exhibit such a light but may do so;
  • when making way through the water, in addition to the lights prescribed hereh, sidelights and a sternlight.
  • when shooting nets, white light over white light (Flag Z by day);
  • when hauling nets, white light over red light (Flag G by day);
  • When nets are caught on the bottom, red light over red light (Flag P by day).
Fishing vessel, trawling
Fishing vessel, trawling day abeam Day sign
Fishing vessel, trawling abeam Fishing vessel, trawling ahead Fishing vessel, trawling astern
Abeam, port side
Optional white light Optional white light if shorter than 50 m
Ahead
Optional white light Optional white light if shorter than 50 m
Astern
Fishing vessel, trawling, shooting nets (white over white)
Trawling, shooting nets day Day sign • Flag Z
Trawling, shooting nets abeam Trawling, shooting nets ahead Trawling, shooting nets astern
Abeam, port side Ahead Astern
Fishing vessel, trawling, hauling nets (white over red)
Trawling hauling nets day Day sign • Flag G
Trawling hauling nets abeam Trawling hauling nets ahead Trawling hauling nets astern
Abeam, port side Ahead Astern
Fishing vessel, trawling, nets caught on bottom (red over red)
Trawling nets caught day Day sign • Flag P
Trawling nets caught abeam Trawling nets caught ahead Trawling nets caught astern
Abeam, port side Ahead Astern
Figure 10.25 – Fishing vessels engaged in trawling.
Figure 10.26 – Vessel engaged in trawling – not making way.
Figure 10.27 – Vessel engaged in trawling – not making way; vessel less than 50 m in length.
Figure 10.28 – Vessel engaged in trawling – making way; vessel less than 50 m in length.

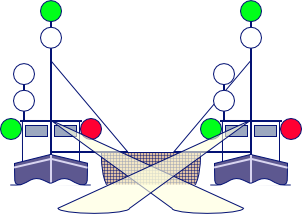

Trawling in span

When pair trawling, each vessel shows searchlights on water aiming forward (Flag T by day); Rule 26 (f) (b)ǂ(2)

Trawling in span, shooting nets
Trawling in span, shooting nets ahead Trawling in span, shooting nets astern
Ahead Astern
Figure 10.29 – Pair trawling vessels.

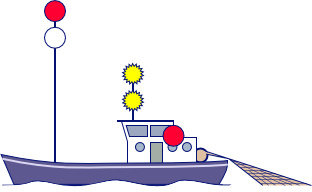

Fishing, other than trawling

A vessel engaged in fishing, other than trawling, according to Rule 26 (c) shall exhibit:

  • two all-round lights in a vertical line, the upper being red and the lower white, or a shape consisting of two cones with apexes together in a vertical line one above the other;
  • when there is outlying gear extending more than 150 metres horizontally from the vessel, an all-round white light or a cone apex upwards in the direction of the gear;
  • when making way through the water, in addition to the lights prescribed here, sidelights and a sternlight.
Fishing vessel, other than trawling, outlying gear >150 m
Fishing vessel, other than trawling, outlying gear >150 m day Day sign
Fishing vessel, other than trawling, outlying gear >150 m abeam Fishing vessel, other than trawling, outlying gear >150 m ahead Fishing vessel, other than trawling, outlying gear >150 m astern
Abeam, port side Ahead Astern
Figure 10.30 – Non-trawling fishing vessel.
Figure 10.31 – Vessel engaged in trawling – making way.
See Fishing – Trawling section above.
Figure 10.32 – Vessel engaged in fishing other than trawling – making way.
Figure 10.33 – Vessel engaged in fishing other than trawlingnot making way.

Purse seining

Purse Seiners will exhibit two all-round yellow lights in a vertical line, flashing alternately; Rule 26 (f) 3ǂ(iii)

Purse seiner fishing vessel
Purse seiner fishing vessel abeam Purse seiner fishing vessel ahead Purse seiner fishing vessel astern
Abeam, port side Ahead Astern
Figure 10.34 – Fishing vessel engaged in purse seining.

Constrained by draught

A vessel constrained by her draught / draft may, (and not “shall”!) in addition to the lights prescribed for power-driven vessels, exhibit where they can best be seen three all-round red lights in a vertical line, or as day sign a cylinder, Rule 28

Power driven vessel, underway, constrained by her draught

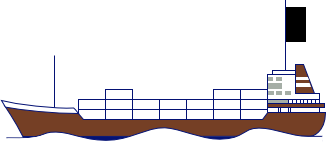

Power driven vessel, underway, constrained by her draught day Day sign (black vertical cylinder)

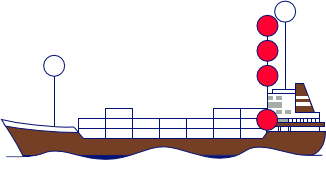

Power driven vessel, underway, constrained by her draught abeam Power driven vessel, underway, constrained by her draught ahead Power driven vessel, underway, constrained by her draught astern
Abeam, port side Ahead Astern
Figure 10.35 – Draught constrained vessel under way.
Figure 10.36 – Vessel constrained by her draft / draught.
Figure 10.37 – Vessel not under command “NUC” – not making way.
Figure 10.38 – Vessel not under command “NUC” – making way.

Not under command

A vessel not under command, sometimes knows as a NUC vessel, shall according to Rule 27(a) exhibit:

  • two all-round red lights in a vertical line where they can best be seen;
  • two spherical shapes in a vertical line where they can best be seen; and
  • when making way through the water also normal sidelights and a sternlight (not shown in the examples below).
Vessel not under command, not making way through the water
Vessel not under command, not making way day Day sign (two black spheres)

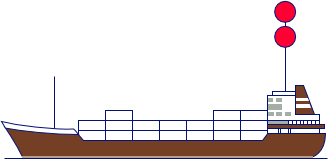

Vessel not under command, not making way abeam Vessel not under command, not making way ahead Vessel not under command, not making way astern
Abeam, port side Ahead Astern
Sailing boat, no wind, no mechanical propulsion
Sailing boat, no wind, day Sailing boat, no wind, ahead Sailing boat, no wind, astern
Abeam, port side Ahead Astern
Figure 10.39 – NUC vessels, not making way.

Restricted in her ability to manoeuvre

A vessel restricted in her ability to manoeuvre, sometimes knows as a RAM vessel, except a vessel engaged in mine clearance operations, shall according to Rule 27(b) exhibit:

  • three all-round lights in a vertical line where they can best be seen. The highest and lowest of these lights shall be red and the middle light shall be white;
  • three shapes in a vertical line where they can best be seen. The highest and lowest of these shapes shall be balls and the middle one a diamond;
  • when making way through the water, also a masthead light or lights, sidelights and a sternlight
Restricted in her ability to manoeuvre, not making way through the water
Restricted in her ability to manoeuvre day Day sign: two black spheres and in the middle a black diamond shape
Restricted in her ability to manoeuvre abeam Restricted in her ability to manoeuvre ahead Restricted in her ability to manoeuvre astern
Abeam, port side Ahead Astern
Restricted in her ability to manoeuvre, making way through the water, longer than 50 m
Restricted in her ability to manoeuvre, making way Restricted in her ability to manoeuvre, making way ahead Restricted in her ability to manoeuvre, making way astern
Abeam, port side Ahead Astern
Figure 10.40 – manoeuvre restricted vessels; making way and not making way.
Figure 10.41 – Vessel restricted in her ability to manoeuvre – making way; vessel less than 50 m in length.
Figure 10.42 – Vessel restricted in her ability to manoeuvre – at anchor; vessel less than 50 m in length.
Figure 10.43 – Vessel engaged in towing operation which severely restricts towing vessel and her tow in their ability to deviate from their course – length of tow does not exceed 200 m; towing vessel less than 50 m in length.

Dredging or underwater operations

A vessel engaged in dredging or underwater operations, when restricted in her ability to manoeuvre; Rule 27(d), shall exibit

  • two all-round red lights or two balls in a vertical line to indicate the side on which the obstruction exists;
  • two all-round green lights or two diamonds in a vertical line to indicate the side on which another vessel may pass; and
  • when at anchor (or not making way), the lights or shapes prescribed in this section instead of the lights or shapes prescribed in Rule 30
Dredging or underwater operations, shorter than 50 m, not making way
Dredging or underwater operations, day Dredging or underwater operations, ahead Dredging or underwater operations, astern
Ahead, day signs Ahead Astern
Dredging or underwater operations, shorter than 50 m, making way
Dredging or underwater operations, under way, day Dredging or underwater operations, under way, ahead Dredging or underwater operations, under way, astern
Ahead, day signs Ahead Astern
Dredging or underwater operations, longer than 50 m, making way
Dredging or underwater operations, longer than 50 m, making way day Dredging or underwater operations, longer than 50 m, making way ahead Dredging or underwater operations, longer than 50 m, making way astern
Ahead, day signs Ahead Astern
Figure 10.44 – Manoeuvre restricted vessels engaged in dredging or underwater operations; making way or not making way.
Figure 10.45 – Vessel engaged in dredging or underwater operations when restricted in ability to manoeuvremaking way with an obstruction on the starboard side.
Figure 10.46 – Vessel engaged in dredging or underwater operations when restricted in ability to manoeuvrenot making way with an obstruction on the starboard side.
Figure 10.47 – Vessel engaged in dredging or underwater operations when restricted in ability to manoeuvrenot making way with an obstruction on the port side.

Small diving vessel

Rule 27(e)

Small diving vessel
Small diving vessel day or Small diving vessel day2 Day signs
Diving abeam Diving ahead Diving astern
Abeam, port side Ahead Astern
Figure 10.48 – Small vessel engaged in diving operations.
Figure 10.49 – Small diving vessel with operations below water.
Figure 10.50 – Vessel engaged on pilotage duty – underway.
Figure 10.51 – Vessel engaged on pilotage duty – at anchor; vessel of less than 50 m in length.

Pilot boat

Rule 29, duty shall exhibit:

  • at or near the masthead, two all-round lights in a vertical line, the upper being white and the lower red;
  • when underway, in addition, sidelights and a sternlight; as shown in the example below.
Pilot boat, shorter than 50 m
Pilot boat Pilot boat, ahead Pilot boat, astern
Abeam, starboard side Ahead Astern
Figure 10.52 – Small pilot boat making way.

Hovercraft, hydrofoil ferry

An air-cushion vessel when operating in non-displacement mode shall, besides a masthead light forward, (plus a masthead light abaft if longer than 50 m) sidelights and a sternlight, exhibit an all‑round flashing yellow light (faster than 2 flashes per second). Rule 23(b)

Also a hydrofoil ferry or high speed catamaran when acting as ferry is often allowed under local regulations to exhibit an all-round flashing yellow light.

Hovercraft, longer than 50 m
Hovercraft abeam Hovercraft ahead Hovercraft astern
Abeam, port side Ahead Astern
Figure 10.53 – Hovercraft in non-displacement mode, making way.
High speed catamarans ferries and foiling ferries may also exhibit the flashing yellow light.
Figure 10.54 – Air-cushion vessel when operating in the nondisplacement mode – vessel less than 50 m in length.
Figure 10.55 – Vessel engaged in mineclearance operations – vessel less than 50 m in length, starboard side.
Figure 10.56 – Vessel engaged in mineclearance operations, port side.

Minesweeper

A vessel engaged in mine clearance operations shall in addition to the lights prescribed for a power-driven vessel, or to the lights or shape prescribed for a vessel at anchor, exhibit three all-round green lights or three balls. One of these lights or shapes shall be exhibited near the mast head and one at each end of the fore yard. These lights or shapes indicate that it is dangerous for another vessel to approach within 1000 metres of the mine clearance vessel. Rule 27(f)

Minesweeper, shorter than 50 m, making way

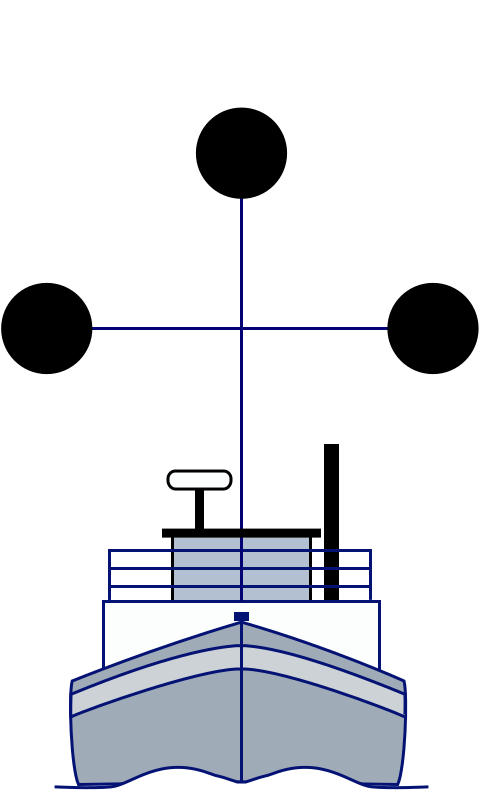

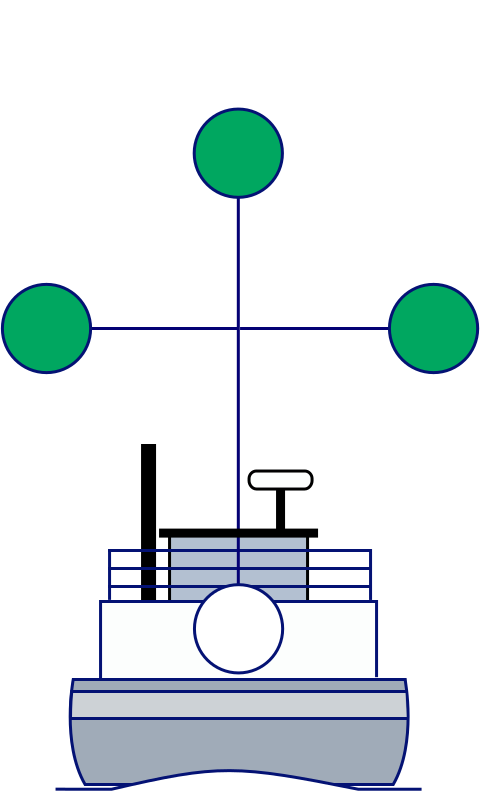

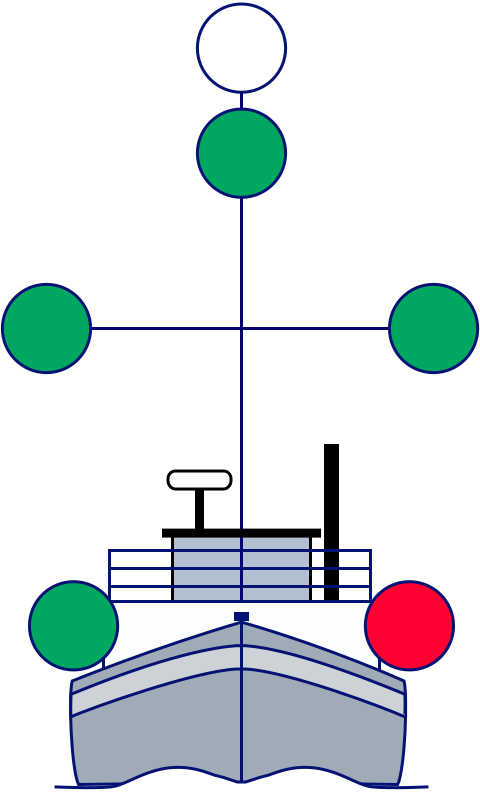

Minesweeper day Minesweeper ahead Minesweeper astern
Ahead, day signs (3 black spheres) Ahead Astern
Figure 10.57 – Vessel engaged in mineclearance operations, as seen ahead.

Overview

Overview day signs lights vessels
Figure 10.58 – Overview of most commonly encountered lights and day signs.
Lights are all-round except where indicated.

Also you can download the exercises + answers PDF PDF download
